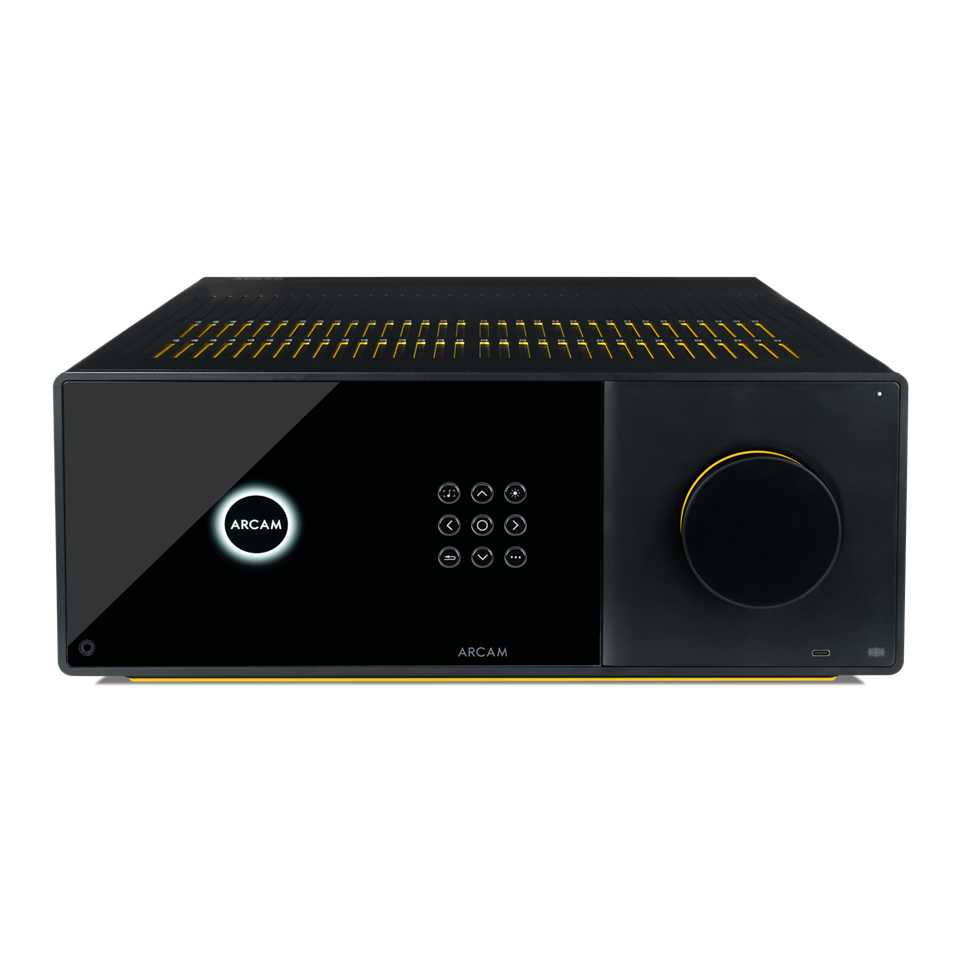

AVA25 (Coming Soon)

AV Amplifier

Elevate Your Listening. Experience music and movies as they were meant to be heard.

Find a dealer
Overview

Step into a world where every note and every scene is delivered with uncompromising precision and emotional depth. The AVA25 isn’t just an amplifier—it’s the culmination of nearly 50 years of ARCAM’s mastery in sound design, created for those who demand nothing less than excellence.

Expertly engineered in Cambridge, UK, the AVA25 builds on our heritage with advanced Class AB amplification, developed in-house to deliver a richer, more musical performance. This is how we achieve sound that feels alive—rich, detailed, and effortlessly immersive.

With nine channels of powerful amplification, the AVA25 effortlessly drives immersive setups like 7.1.2 or 5.1.4, and offers expansion to 16 total channels with additional subwoofers, height, or surround speakers. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D transport you with a cinematic experience, while Dirac Live room correction ensures flawless detail tailored to your space.

At ARCAM, sound quality isn’t just a promise—it’s our obsession. The AVA25 is the result of rigorous testing and listening sessions to award it the ARCAM name.

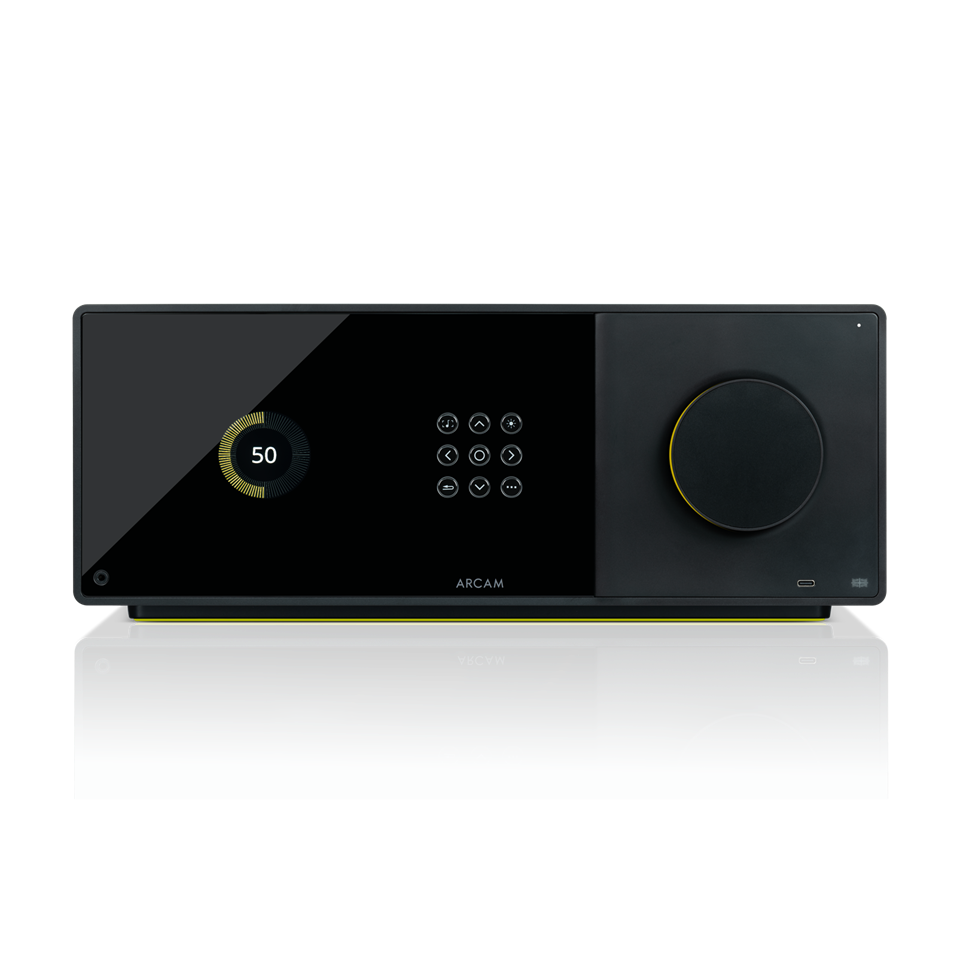

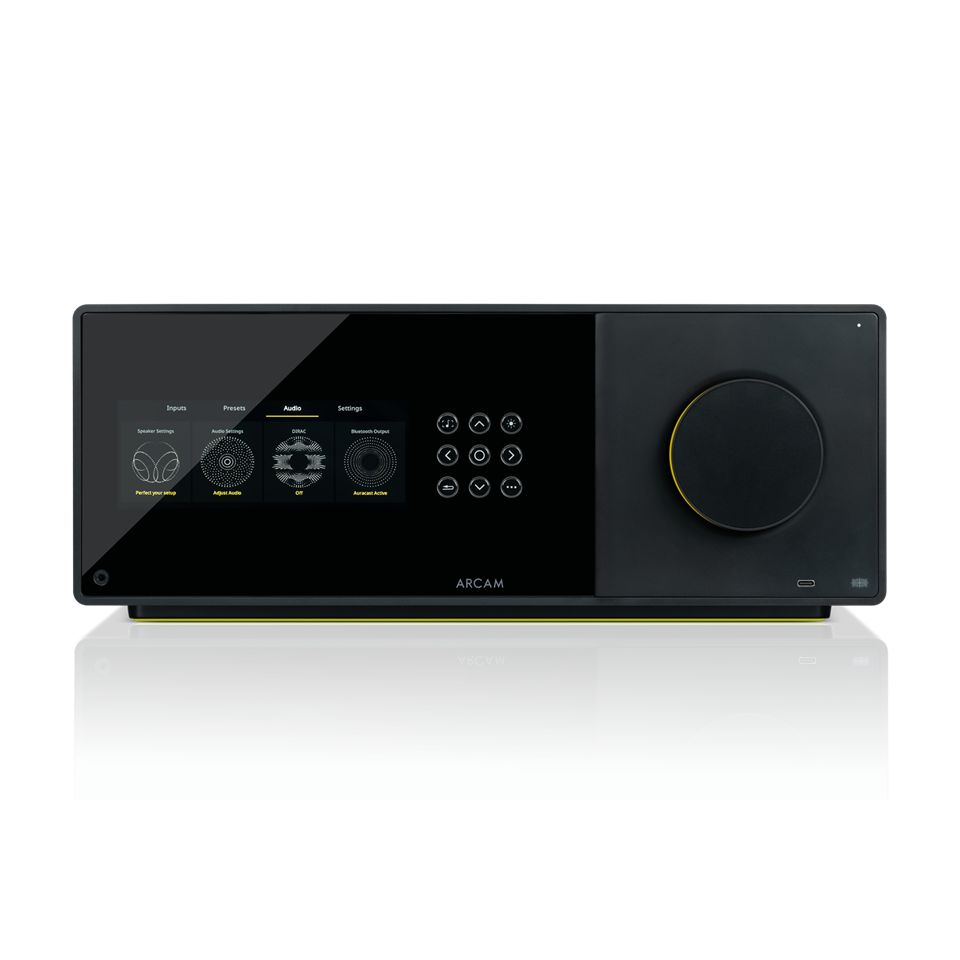

And with a vibrant 6.5" colour display, intuitive on-screen menus, and the new Radia App, setup and streaming are effortless.

  • High power ARCAM Class AB Amplification with 9x 100W Power Output into 8?

  • Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.

  • DTS:X - place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.

  • Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment

  • Bluetooth remote control for continuous out-of-sight control

  • Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs

  • Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect

  • Works with Apple and Android devices, with direct connection from lossless music services

  • Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience

  • Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position

  • Plastic free packaging for easy disposal of natural materials

Technical spec

Decoding / Encoding
Maximum Channel Count, 16
Reassignable Channels, Front, Surround Back, Height Channels
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X, IMAX Enhance, Aura 3D, MPEG H

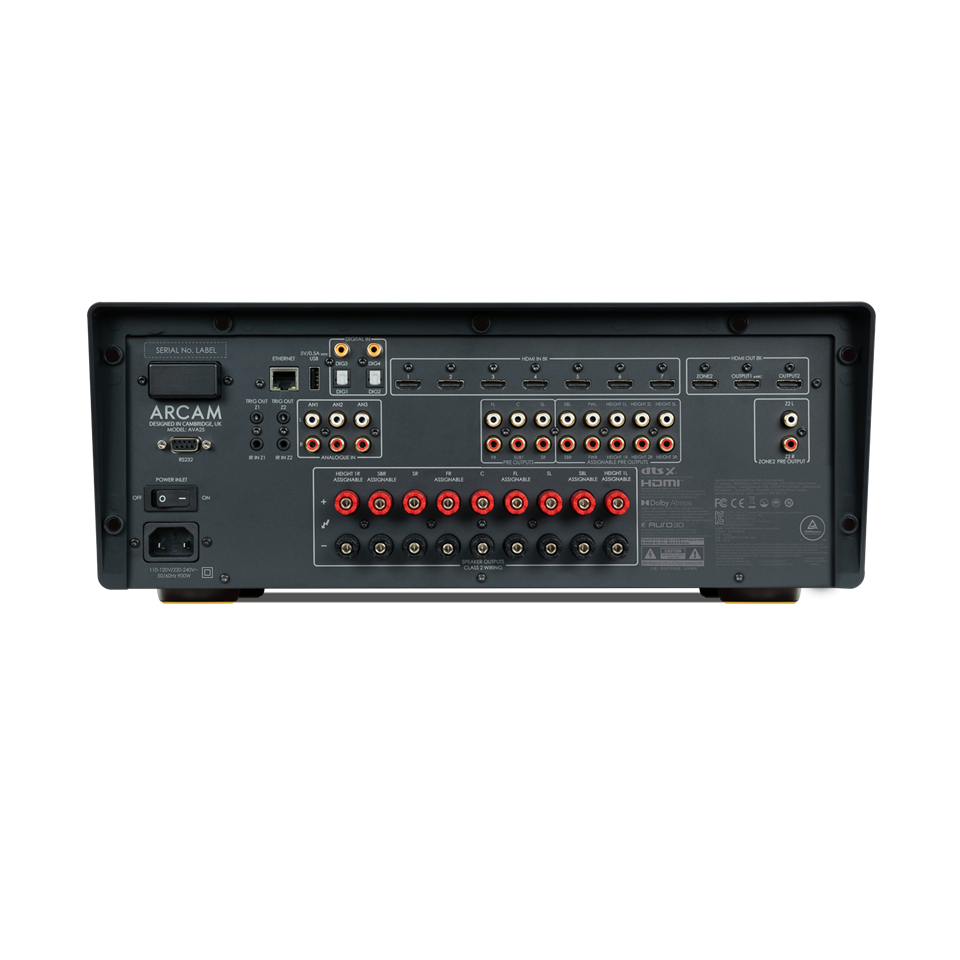

HDMI
Inputs/Outputs, 7/2 (Zone 1), 1 (Zone 2), HDMI/HDCP Versions, 2.1a/2.3 Resolution support resolution/framerate, Up to 8K/60Hz or 4K 120Hz Supported Dynamic Range Profiles, HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG Supported HDMI features, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display

Streaming
Works with (apps), ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready) Works with (services), Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP Supported Hi-res media, FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA Supported Hi-res Bit depth, 16, 24 Supported samples rates (kHz), Up to 192 kHz Gapless Playback Frequency response, 20Hz—20kHz ± 0.05dB

Digital Inputs
Number of inputs (Coaxial/Toslink), 2/2 Supported Sample Rates (kHz), Coaxial (RCA), 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink), 96, 88.2, 48, 44.1 Bit depths (bit), Coax & Toslink, 24, 16 Frequency response, 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS), 100dB

Analogue Inputs
Number of inputs, 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Number of Outputs XLR/RCA 0/16 Single-ended (RCA) peak output level per channel 2V RMS THD+N (20 Hz to 20 kHz) –100dB

Amplification
Amplifier Channels, 9, Class AB

Continuous power output (0.5% THD)
8O, 20Hz - 20kHz, 2 channels driven, 125W* 4O, 1kHz, 2 channels driven, 200W* 8O, 20Hz - 20kHz, 9 channels driven, 100W* 4O, 1kHz, 120W* Harmonic distortion, 80% power, 8O at 1kHz, 0.05%*

General
Mains voltage (V/Hz)100–120V or 220–240V, 50–60Hz Max Power consumption (W) 900W Max Thermal dissipation (BTU/hour)3070BTU Idle Power consumption (W) 59W Idle Thermal dissipation (BTU/hour) 200BTU Standby Power consumption (Default/Low Power) 2W/0.3W Dimensions W x D (including speaker terminals) x H (including feet) W432 x D407.4.7 x H170mm Weight (net) 10kg Weight (packed) 15.7kg

Supplied accessories
Region Specific Power Cord(s) Rear panel cowl Remote control with 2 x AAA batteries Measurement Microphone 5m USB Cable Quick Start Guide Important Safety Instructions

Wireless Specifications Bluetooth Version 5.4

Bluetooth Profile A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP

Bluetooth Transmitter Frequency Range and Power 2,402 MHz to 2,480 MHz <Max 10.73dBm

Wi-Fi Network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi Transmitter Frequency Range and Power 2.400 GHz to 2.4835 GHz < Max 17.4dBm

5G Wi-Fi Transmitter Frequency Range and Power 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
