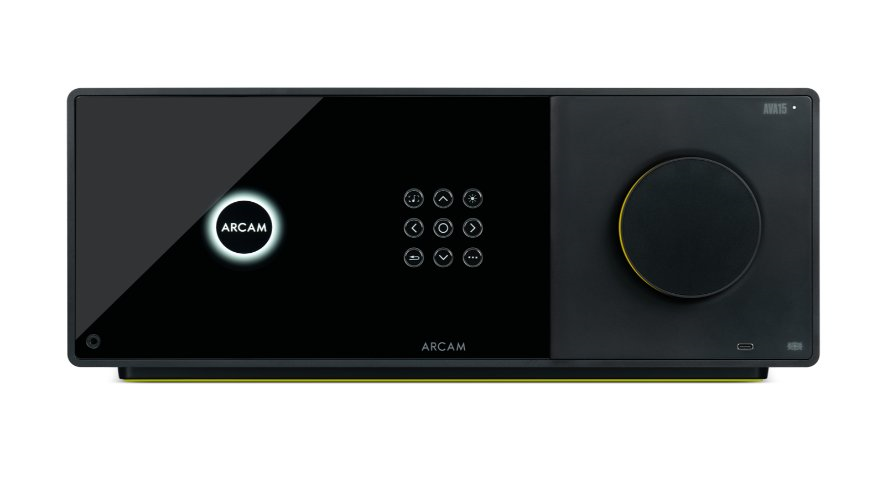

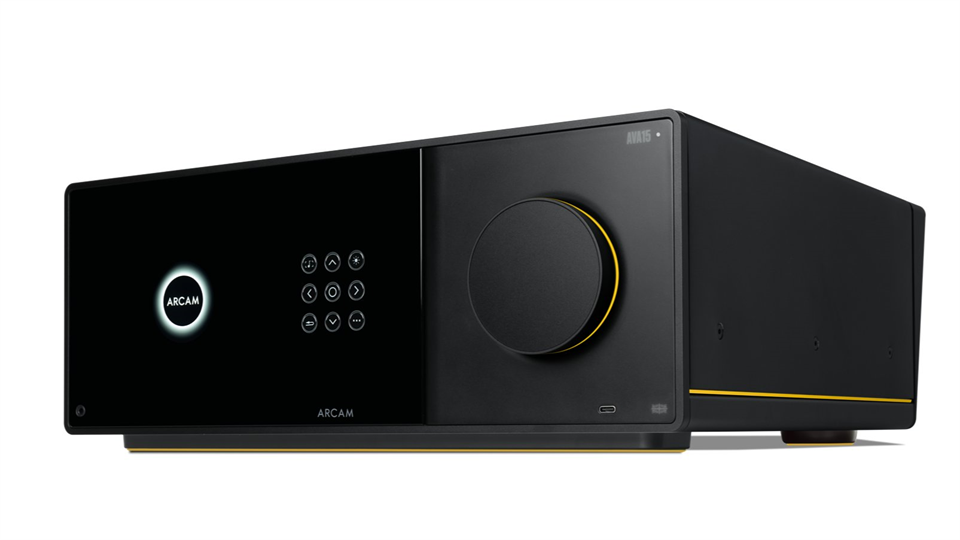

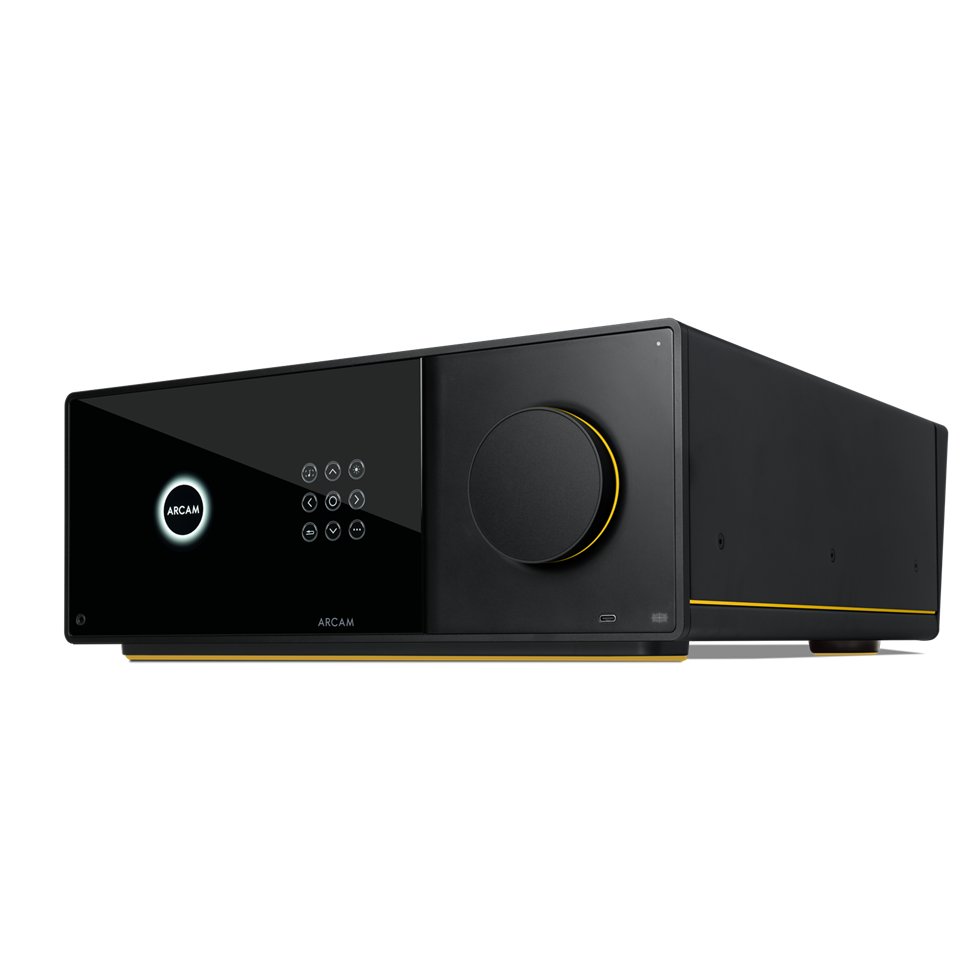

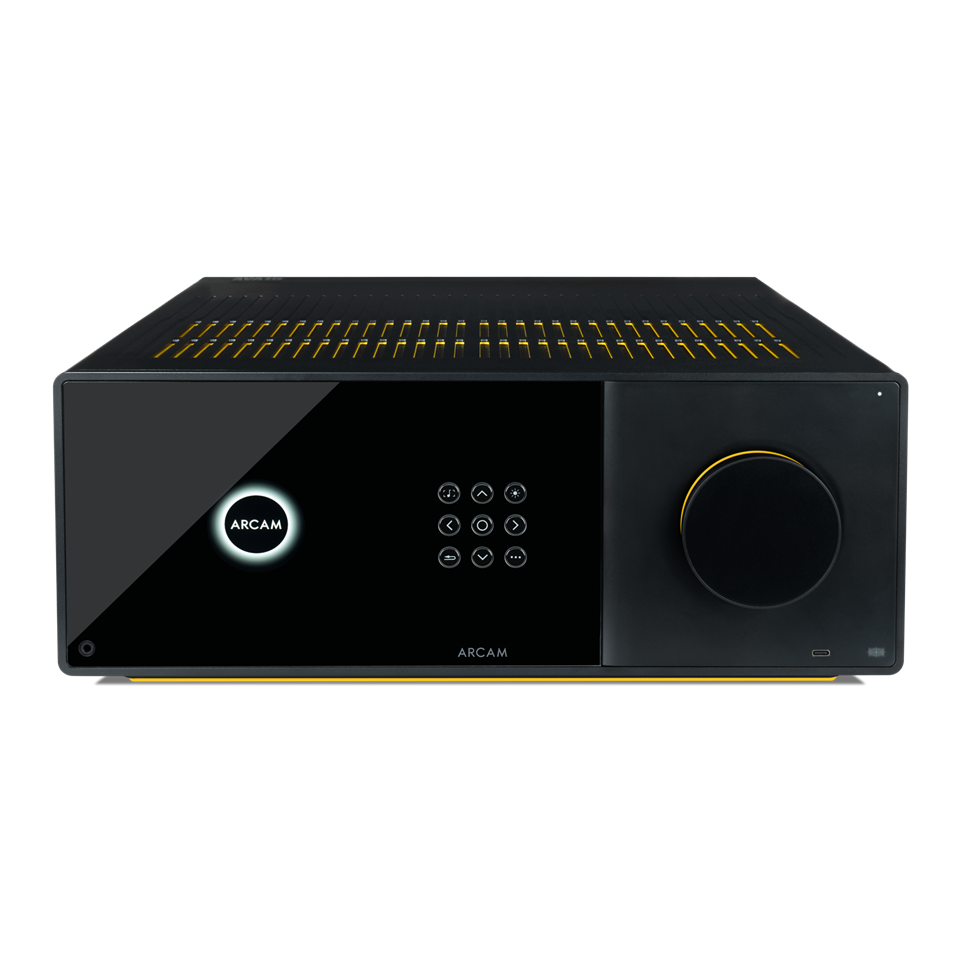

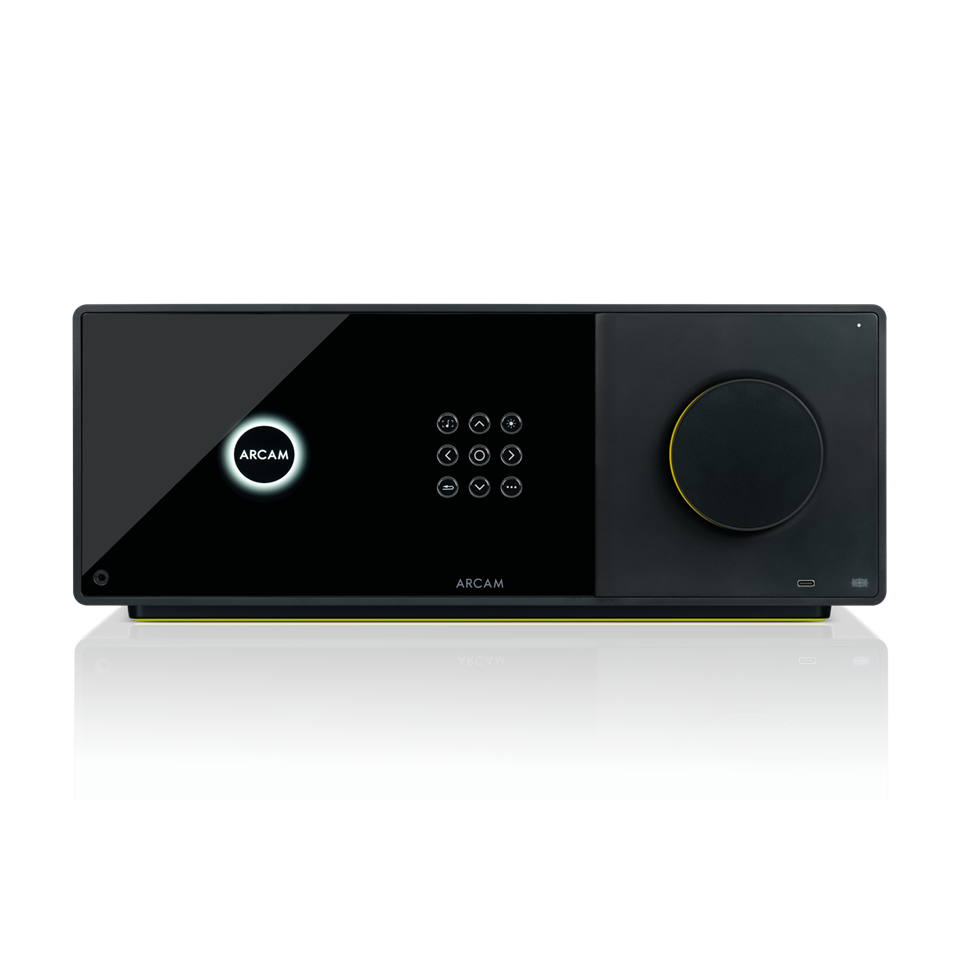

AVA15 (Coming Soon)

AV Amplifier

Start Your Journey into True High-Fidelity Immersive Surround Sound.

Find a dealer
Overview

The AVA15 brings breathtaking clarity and depth to every note and every scene, putting you at the heart of the performance.

Expertly engineered in Cambridge, UK, and built on over 30 years of surround sound expertise, the AVA15 combines our passion for music with cutting-edge technology. Its powerful Class D amplification and advanced immersive audio processing deliver a sound that’s as thrilling as it is precise.

With nine channels of amplification, the AVA15 drives setups like 7.1.2 or 5.1.4 with ease—and gives you room to expand with extra subwoofers, height, or surround speakers. Dolby Atmos and DTS:X bring cinema-grade immersion to your home, while Dirac Live room correction ensures every detail sounds perfect in your space.

At ARCAM, sound quality isn’t just a promise—it’s our obsession. The AVA15 is the result of rigorous testing and listening sessions to award it the ARCAM name.

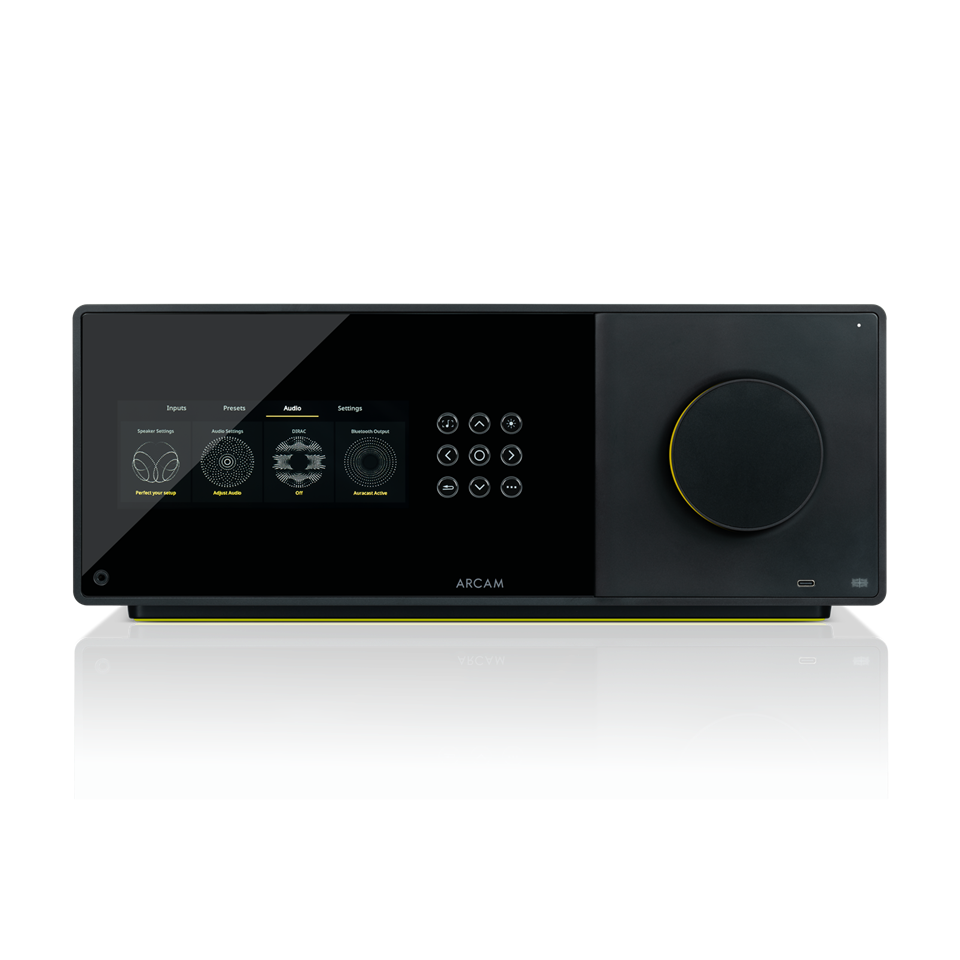

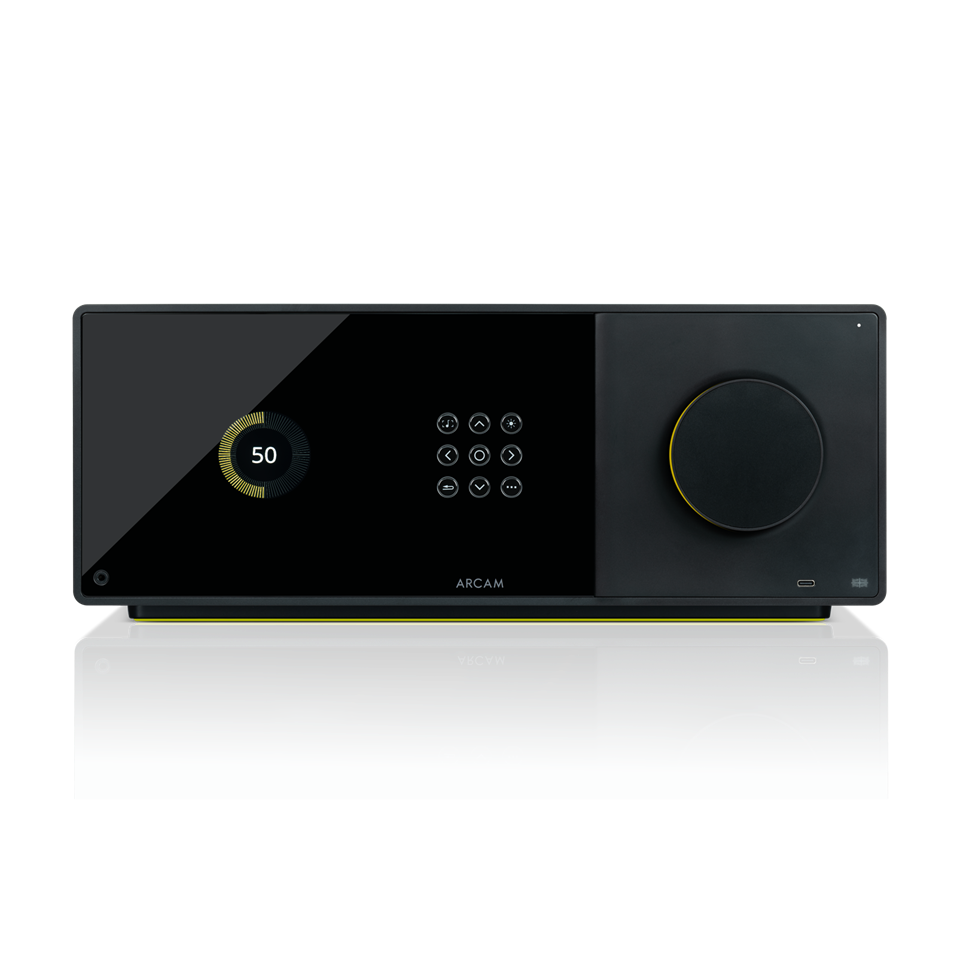

And with a vibrant 6.5" colour display, intuitive on-screen menus, and the new Radia App, setup and streaming are effortless.

  • High power ARCAM Class D Amplification with 9x 100W Power Output into 8O

  • Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.

  • DTS:X - place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.

  • Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment

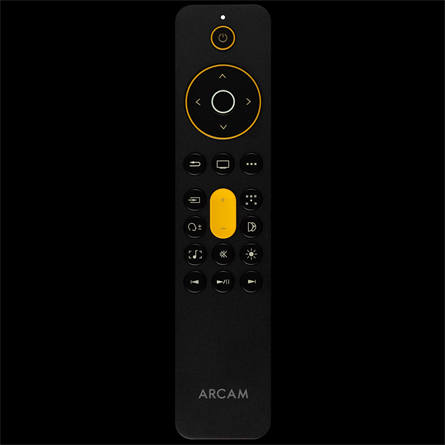

  • Bluetooth remote control for continuous out-of-sight control

  • Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs

  • Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect

  • Works with Apple and Android devices, with direct connection from lossless music services

  • Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience

  • Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position

  • Plastic free packaging for easy disposal of natural materials

Technical spec

Decoding / Encoding
Maximum Channel Count, 12
Reassignable Channels, Front, Surround Back, Height Channels
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X MPEG H

HDMI
Inputs/Outputs, 7/2 HDMI/HDCP Versions, 2.1a/2.3 Resolution support resolution/framerate, Up to 8K/60Hz or 4K 120Hz Supported Dynamic Range Profiles, HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG Supported HDMI features, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display

Streaming
Works with (apps), ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready) Works with (services), Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP Supported Hi-res media, FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA Supported Hi-res Bit depth, 16, 24 Supported samples rates (kHz), Up to 192 kHz Gapless Playback Frequency response, 20Hz—20kHz ± 0.05dB

Digital Inputs
Number of inputs (Coaxial/Toslink), 2/2 Supported Sample Rates (kHz), Coaxial (RCA), 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink), 96, 88.2, 48, 44.1 Bit depths (bit), Coax & Toslink, 24, 16 Frequency response, 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS), 100dB

Analogue Inputs
Number of inputs, 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Number of Outputs XLR/RCA 0/12 Single-ended (RCA) peak output level per channel 2V RMS THD+N (20 Hz to 20 kHz) –100dB

Preamplifier Outputs
Number of Outputs XLR/RCA 0/12 Single-ended (RCA) peak output level per channel 2V RMS THD+N (20 Hz to 20 kHz) –100dB

Amplification
Amplifier Channels, 9, Class D

Continuous power output (0.5% THD)
8O, 20Hz - 20kHz, 2 channels driven, 100W* 4O, 1kHz, 2 channels driven, 150W* 8O, 20Hz - 20kHz, 9 channels driven, 75W* 4O, 1kHz, 90W* Harmonic distortion, 80% power, 8O at 1kHz, 0.01%*

General
Mains voltage (V/Hz)100–120V or 220–240V, 50–60Hz Max Power consumption (W) 900W Max Thermal dissipation (BTU/hour)3070BTU Idle Power consumption (W) 59W Idle Thermal dissipation (BTU/hour) 200BTU Standby Power consumption (Default/Low Power) 2W/0.3W Dimensions W x D (including speaker terminals) x H (including feet) W432 x D407.4.7 x H170mm Weight (net) 10kg Weight (packed) 15.7kg

Supplied accessories
Region Specific Power Cord(s) Rear panel cowl Remote control with 2 x AAA batteries Measurement Microphone 5m USB Cable Quick Start Guide Important Safety Instructions

Wireless Specifications Bluetooth Version 5.4

Bluetooth Profile A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP

Bluetooth Transmitter Frequency Range and Power 2,402 MHz to 2,480 MHz <Max 10.73dBm

Wi-Fi Network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi Transmitter Frequency Range and Power 2.400 GHz to 2.4835 GHz < Max 17.4dBm

5G Wi-Fi Transmitter Frequency Range and Power 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
