Decoding / Encoding
Maximum Channel Count, 12
Reassignable Channels, Front, Surround Back, Height Channels
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X MPEG H
HDMI

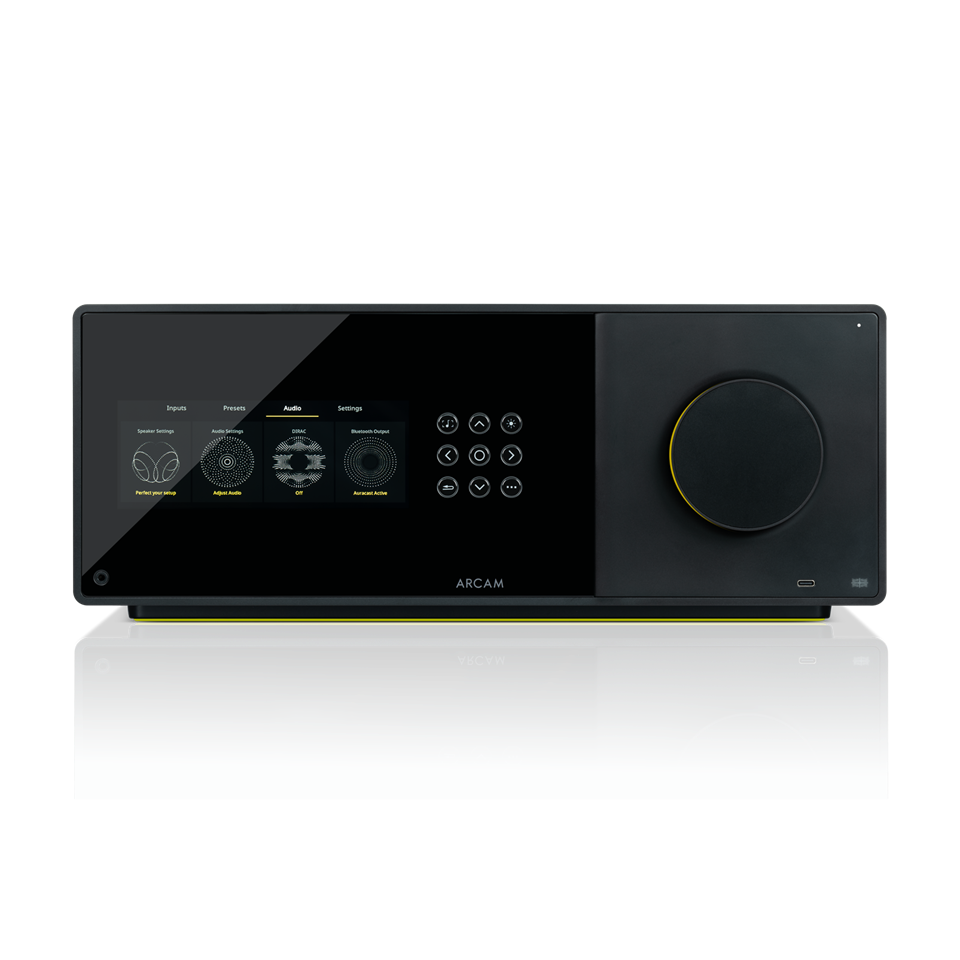

Inputs/Outputs, 7/2 HDMI/HDCP Versions, 2.1a/2.3 Resolution support resolution/framerate, Up to 8K/60Hz or 4K 120Hz Supported Dynamic Range Profiles, HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG Supported HDMI features, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display
Streaming
Works with (apps), ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready) Works with (services), Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP Supported Hi-res media, FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA Supported Hi-res Bit depth, 16, 24 Supported samples rates (kHz), Up to 192 kHz Gapless Playback Frequency response, 20Hz—20kHz ± 0.05dB
Digital Inputs
Number of inputs (Coaxial/Toslink), 2/2 Supported Sample Rates (kHz), Coaxial (RCA), 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink), 96, 88.2, 48, 44.1 Bit depths (bit), Coax & Toslink, 24, 16 Frequency response, 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS), 100dB
Analogue Inputs
Number of inputs, 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB Frequency response 20Hz—20kHz ± 0.2dB
Preamplifier Outputs

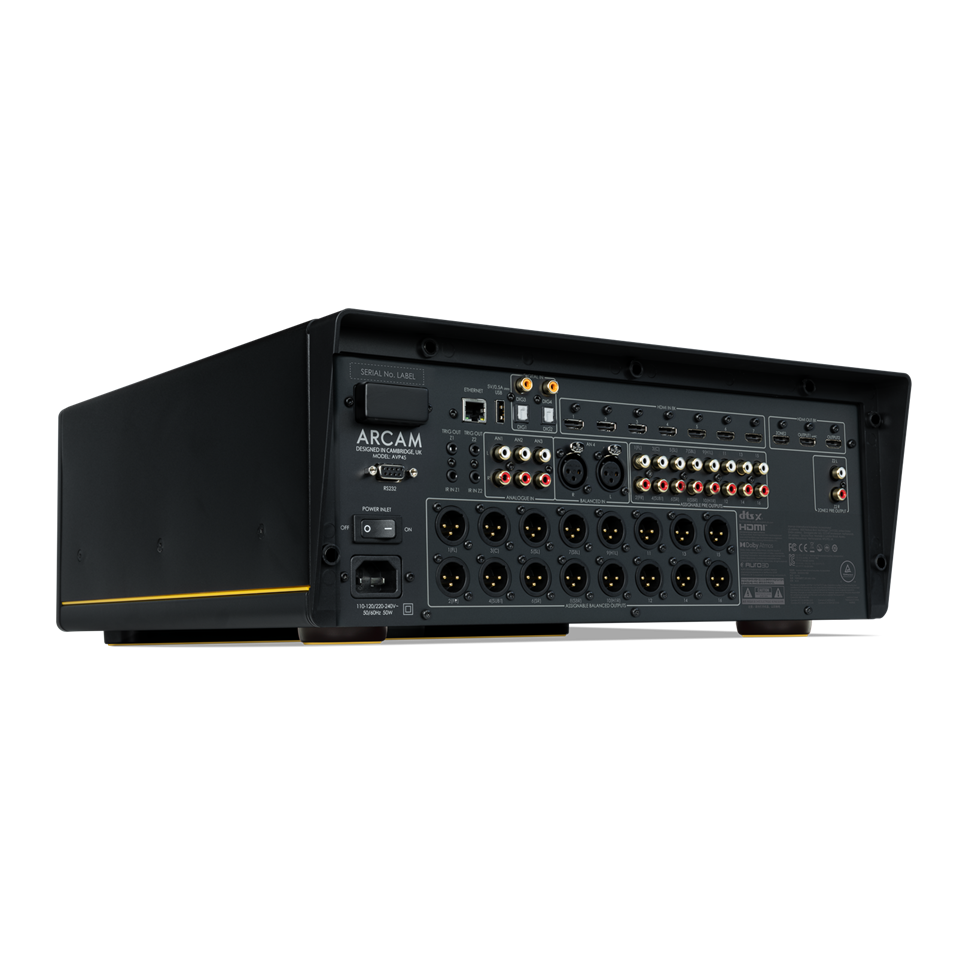

Number of Outputs XLR/RCA 0/16 Single-ended (RCA) peak output level per channel 2V RMS THD+N (20 Hz to 20 kHz) –100dB
General
Mains voltage (V/Hz)100–120V or 220–240V, 50–60Hz Max Power consumption (W) 900W Max Thermal dissipation (BTU/hour)3070BTU Idle Power consumption (W) 59W Idle Thermal dissipation (BTU/hour) 200BTU Standby Power consumption (Default/Low Power) 2W/0.3W Dimensions W x D (including speaker terminals) x H (including feet) W432 x D407.4.7 x H170mm Weight (net) 10kg Weight (packed) 15.7kg
Supplied accessories

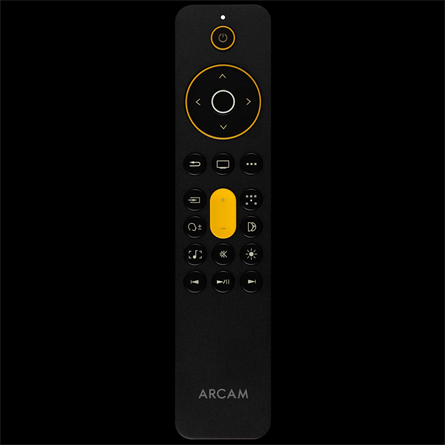

Region Specific Power Cord(s) Rear panel cowl Remote control with 2 x AAA batteries Measurement Microphone 5m USB Cable Quick Start Guide Important Safety Instructions
Wireless Specifications Bluetooth Version 5.4
Bluetooth Profile A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
Bluetooth Transmitter Frequency Range and Power 2,402 MHz to 2,480 MHz <Max 10.73dBm
Wi-Fi Network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power 2.400 GHz to 2.4835 GHz < Max 17.4dBm
5G Wi-Fi Transmitter Frequency Range and Power 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.2
